SM4加密算法原理学习
|
Crypto
|
144
|
0
本文最后更新于 335 天前，其中的信息可能已经过时，如有错误可以直接在文章下留言

又来补加密算法了

SM4（原名 SMS4.0）是中华人民共和国政府采用的一种分组密码标准，由国家密码管理局于 2012 年 3 月 21 日发布。相关标准为 “GM/T 0002-2012《SM4 分组密码算法》（原 SMS4 分组密码算法）”。

SM4 是一种分组加密，是我们大中华的加密算法，所有也叫国密，它也是对称密码算法。

这里我们明确两个概念吧，一个是分组加密，一个是对称加密算法，写了那么多加密算法的文章，其实它们已经出现很多次了。分组密码就是将我们所要加密的明文一开始就切成一段段的，放入数组当中，然后分组加密，再拼接成密文，有时候密钥也会被分组。

而对称加密算法就是 (也叫私钥加密) 指加密和解密使用相同密钥的加密算法。有时又叫传统密码算法，就是加密密钥能够从解密密钥中推算出来，同时解密密钥也可以从加密密钥中推算出来。而在大多数的对称算法中，加密密钥和解密密钥是相同的，所以也称这种加密算法为秘密密钥算法或单密钥算法。它要求发送方和接收方在安全通信之前，商定一个密钥。对称算法的安全性依赖于密钥，泄漏密钥就意味着任何人都可以对他们发送或接收的消息解密，所以密钥的保密性对通信的安全性至关重要。

上面信息来自百度

SM4 加密

SM4 的明文长度是 128bit，平均分为四组，密钥的长度也是 128bit。

其加解密过程采用了 32 轮迭代机制（与 DES、AES 类似），每一轮需要一个轮密钥。

所以 SM4 加密分为两个模块，一部分是加密模块，另一部分是密钥扩展模块。这些模块中包含的运算操作主要有：异或运算、移位变换、盒变换。

盒变换说的就是 S 盒，AES 也有对吧，这个 S 盒的全称其实就是 Substitution Box，Substitution 的含义是替换，替代，也就是替换盒，S 盒在加密算法当中的作用几乎都是差不多的。

说说这里 SM4 怎么通过输入 S 盒的数据进行替换，一般输入 S 盒的数据长度为 8bit，然后就转换成 16 进制的数据。比如 11001010 转换成 16 进制后就是 CA，然后到 S 盒里面找第 C 行第 A 列，替换之后就是 5C。

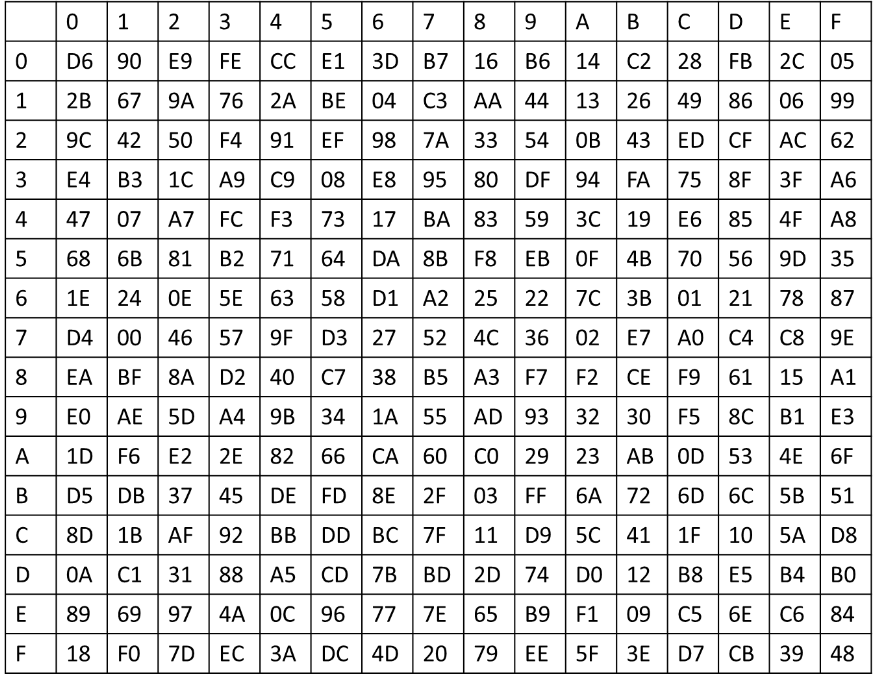

SM4 的 S 盒如下

密钥扩展模块

我们得先介绍密钥扩展模块

输入的原始密钥 key 为 128bit 的数据，将其按位拆分成 4 个 32bit 的数据 K0,K1,K2,K3，

将初始密钥 K0, K1, K2, K3 分别异或固定参数 FK0, FK1, FK2, FK3 得到用于循环的密钥 k0, k1, k2, k3。

即 k0=K0⊕FK0, k1=K1⊕FK1, k2=K2⊕FK2,k3=K3⊕FK3, k0=K0⊕FK0, k1=K1⊕FK1, k2=K2⊕FK2, k3=K3⊕FK3，这里的⊕是异或的数学符号，额 (⊙﹏⊙)，我也是第一次知道，因为只用 ^。

这里的固定参数在官方文档里面。

官方文档链接：gmbz.org.cn/main/viewfile/20180108015408199368.html

文档里面那个奇奇怪怪的符号应该是 A

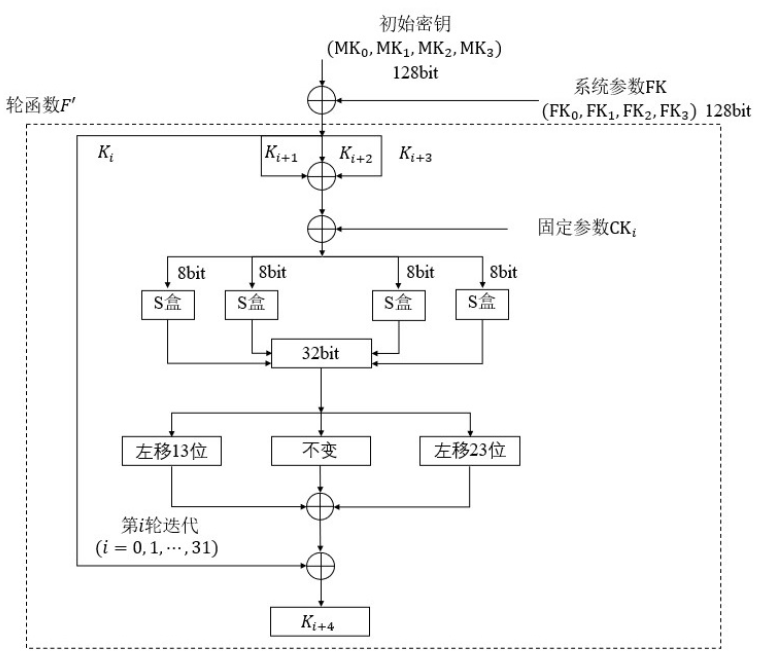

进入轮函数当中，i=0 时为第一次轮变换，一直进行到 i=31 结束。然后上图中的 Ki 暂时不做处理，然后令另外三个 Ki+1、Ki+2、Ki+3 和固定参数 CKi 异或得到一个 32bit 的数据，作为盒变换的输入。一开始这个 Ki，和另外三个 Ki+1、Ki+2、Ki+3 的大概意思，举个例子，比如第一轮函数，Ki 就是 K0，函数结束会得到一个 K4，然后第二轮加密 Ki 就变成了 K1，而 Ki+3 就是上一轮新生成的 K4，以此类推。

所以 sbox_input=Ki^Ki+1^Ki+2^CKi，将这个盒输入拆成 4 个 8bit 长度的数据，然后我们再得到 4 个盒输出，合并起来就是盒输出 sbox_output，然后左移 13 位，得到一个数据 y13，右移 23 位，得到另外一个数据 y23。

然后再将盒输出和 y13、y23、ki, 进行异或即可得到轮密钥，也是下一轮函数的 Ki+3

也就是 rki=Ki+4=y13^y23^Ki^sbox_output。总共产生 32 个轮密钥，用于 32 轮加密函数当中。这篇博客讲的很详细

SM4 加密算法原理和简单实现（java） – kentle – 博客园 (cnblogs.com)

里面的 java 代码也很好理解，以下就是密钥扩展模块的 Java 代码实现。

int[] key_r;

    /* 初始化轮密钥 */
    SM4(byte[] key) {
        this.key_r = keyGenerate(key);
    }

    /* 密钥拓展 */
    private int[] keyGenerate(byte[] key) {
        int[] key_r = new int[32];//轮密钥rk_i
        int[] key_temp = new int[4];
        int box_in, box_out;//盒变换输入输出
        final int[] FK = {0xa3b1bac6, 0x56aa3350, 0x677d9197, 0xb27022dc};
        final int[] CK = {
                0x00070e15, 0x1c232a31, 0x383f464d, 0x545b6269,
                0x70777e85, 0x8c939aa1, 0xa8afb6bd, 0xc4cbd2d9,
                0xe0e7eef5, 0xfc030a11, 0x181f262d, 0x343b4249,
                0x50575e65, 0x6c737a81, 0x888f969d, 0xa4abb2b9,
                0xc0c7ced5, 0xdce3eaf1, 0xf8ff060d, 0x141b2229,
                0x30373e45, 0x4c535a61, 0x686f767d, 0x848b9299,
                0xa0a7aeb5, 0xbcc3cad1, 0xd8dfe6ed, 0xf4fb0209,
                0x10171e25, 0x2c333a41, 0x484f565d, 0x646b7279
        };
        //将输入的密钥每32比特合并，并异或FK
        for (int i = 0; i < 4; i++) {
            key_temp[i] = jointBytes(key[4 * i], key[4 * i + 1], key[4 * i + 2], key[4 * i + 3]);
            key_temp[i] = key_temp[i] ^ FK[i];
        }
        //32轮密钥拓展
        for (int i = 0; i < 32; i++) {
            box_in = key_temp[1] ^ key_temp[2] ^ key_temp[3] ^ CK[i];
            box_out = sBox(box_in);
            key_r[i] = key_temp[0] ^ box_out ^ shift(box_out, 13) ^ shift(box_out, 23);
            key_temp[0] = key_temp[1];
            key_temp[1] = key_temp[2];
            key_temp[2] = key_temp[3];
            key_temp[3] = key_r[i];
        }
        return key_r;
    }

加密模块

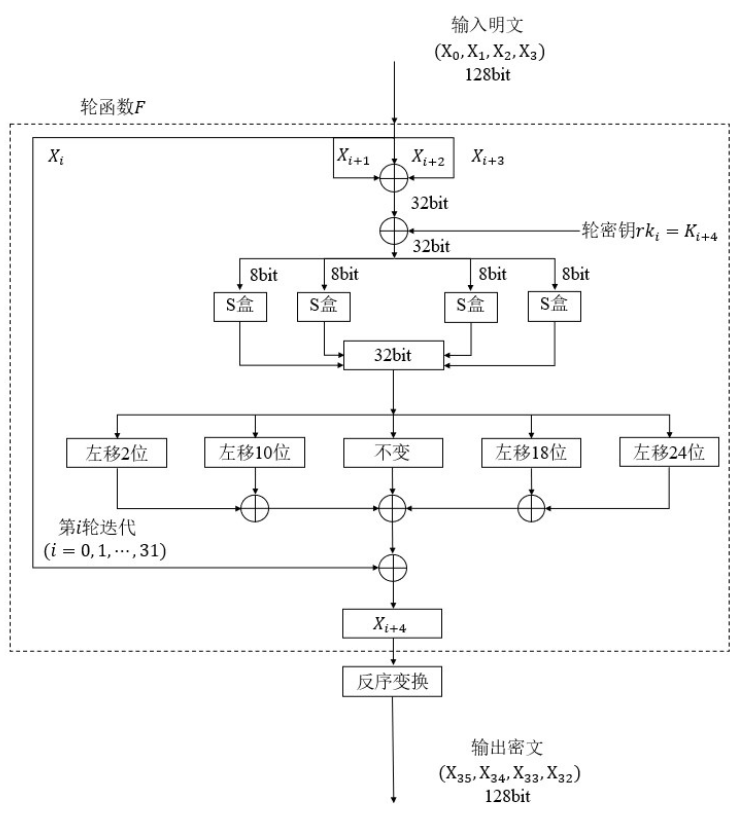

这是加密的流程图，首先将明文分为四组，每组长度为 32bit，然后轮函数和密钥扩展模块的轮函数差不多，Xi 先不处理，这里的盒输入 sbox_input=Xi+1^Xi+2^Xi+3^rki(这里我直接用计算机的异或符号了)，然后再通过一个盒变换得到一个盒输出，再位移对吧，和密钥扩展一样，只不过这里数据比较多，最后都将它们异或。

最后的 Xi+4=y2^y10^y18^y24^sbox_output^Xi，然后这个 Xi+4 会继续在下一轮加密当中发挥作用，

将轮函数 F 最后生成的 4 个 32bit 数据 X32、X33、X34、X35，合并后执行反序变换操作，得到最终的 128bit 的密文数据，反序就是反转顺序，最后的密文就是 X35、X34、X33、X32。

其实加密流程还是挺清晰的。以下是 SM4 加密的 C++ 实现

#define  _CRT_SECURE_NO_WARNINGS
#include <iostream>
#include <string>
#include <cmath>
using namespace std;

string BinToHex(string str) {//二进制转换为十六进制的函数实现
	string hex = "";
	int temp = 0;
	while (str.size() % 4 != 0) {
		str = "0" + str;
	}
	for (int i = 0; i < str.size(); i += 4) {
		temp = (str[i] - '0') * 8 + (str[i + 1] - '0') * 4 + (str[i + 2] - '0') * 2 + (str[i + 3] - '0') * 1;
		if (temp < 10) {
			hex += to_string(temp);
		}
		else {
			hex += 'A' + (temp - 10);
		}
	}
	return hex;
}

string HexToBin(string str) {//十六进制转换为二进制的函数实现
	string bin = "";
	string table[16] = { "0000","0001","0010","0011","0100","0101","0110","0111","1000","1001","1010","1011","1100","1101","1110","1111" };
	for (int i = 0; i < str.size(); i++) {
		if (str[i] >= 'A' && str[i] <= 'F') {
			bin += table[str[i] - 'A' + 10];
		}
		else {
			bin += table[str[i] - '0'];
		}
	}
	return bin;
}

int HexToDec(char str) {//十六进制转换为十进制的函数实现
	int dec = 0;
	if (str >= 'A' && str <= 'F') {
		dec += (str - 'A' + 10);
	}
	else {
		dec += (str - '0');
	}
	return dec;
}

string LeftShift(string str, int len) {//循环左移len位函数实现
	string res = HexToBin(str);
	res = res.substr(len) + res.substr(0, len);
	return BinToHex(res);
}

string XOR(string str1, string str2) {//异或函数实现
	string res1 = HexToBin(str1);
	string res2 = HexToBin(str2);
	string res = "";
	for (int i = 0; i < res1.size(); i++) {
		if (res1[i] == res2[i]) {
			res += "0";
		}
		else {
			res += "1";
		}
	}
	return BinToHex(res);
}

string NLTransform(string str) {//非线性变换t函数实现
	string Sbox[16][16] = { {"D6","90","E9","FE","CC","E1","3D","B7","16","B6","14","C2","28","FB","2C","05"},
						 {"2B","67","9A","76","2A","BE","04","C3","AA","44","13","26","49","86","06","99"},
						 {"9C","42","50","F4","91","EF","98","7A","33","54","0B","43","ED","CF","AC","62"},
						 {"E4","B3","1C","A9","C9","08","E8","95","80","DF","94","FA","75","8F","3F","A6"},
						 {"47","07","A7","FC","F3","73","17","BA","83","59","3C","19","E6","85","4F","A8"},
						 {"68","6B","81","B2","71","64","DA","8B","F8","EB","0F","4B","70","56","9D","35"},
						 {"1E","24","0E","5E","63","58","D1","A2","25","22","7C","3B","01","21","78","87"},
						 {"D4","00","46","57","9F","D3","27","52","4C","36","02","E7","A0","C4","C8","9E"},
						 {"EA","BF","8A","D2","40","C7","38","B5","A3","F7","F2","CE","F9","61","15","A1"},
						 {"E0","AE","5D","A4","9B","34","1A","55","AD","93","32","30","F5","8C","B1","E3"},
						 {"1D","F6","E2","2E","82","66","CA","60","C0","29","23","AB","0D","53","4E","6F"},
						 {"D5","DB","37","45","DE","FD","8E","2F","03","FF","6A","72","6D","6C","5B","51"},
						 {"8D","1B","AF","92","BB","DD","BC","7F","11","D9","5C","41","1F","10","5A","D8"},
						 {"0A","C1","31","88","A5","CD","7B","BD","2D","74","D0","12","B8","E5","B4","B0"},
						 {"89","69","97","4A","0C","96","77","7E","65","B9","F1","09","C5","6E","C6","84"},
						 {"18","F0","7D","EC","3A","DC","4D","20","79","EE","5F","3E","D7","CB","39","48"} };
	string res = "";
	for (int i = 0; i < 4; i++) {
		res = res + Sbox[HexToDec(str[2 * i])][HexToDec(str[2 * i + 1])];
	}
	return res;
}

string LTransform(string str) {//线性变换L函数实现
	return XOR(XOR(XOR(XOR(str, LeftShift(str, 2)), LeftShift(str, 10)), LeftShift(str, 18)), LeftShift(str, 24));
}

string L2Transform(string str) {//线性变换L'函数实现
	return XOR(XOR(str, LeftShift(str, 13)), LeftShift(str, 23));
}

string T(string str) {//用于加解密算法中的合成置换T函数实现
	return LTransform(NLTransform(str));
}

string T2(string str) {//用于密钥扩展算法中的合成置换T函数实现
	return L2Transform(NLTransform(str));
}

string KeyExtension(string MK) {//密钥扩展函数实现
	string FK[4] = { "A3B1BAC6", "56AA3350", "677D9197", "B27022DC" };
	string CK[32] = { "00070E15", "1C232A31", "383F464D", "545B6269",
					  "70777E85", "8C939AA1", "A8AFB6BD", "C4CBD2D9",
					  "E0E7EEF5", "FC030A11", "181F262D", "343B4249",
					  "50575E65", "6C737A81", "888F969D", "A4ABB2B9",
					  "C0C7CED5", "DCE3EAF1", "F8FF060D", "141B2229",
					  "30373E45", "4C535A61", "686F767D", "848B9299",
					  "A0A7AEB5", "BCC3CAD1", "D8DFE6ED", "F4FB0209",
					  "10171E25", "2C333A41", "484F565D", "646B7279" };
	string K[36] = { XOR(MK.substr(0,8),FK[0]),XOR(MK.substr(8,8),FK[1]),XOR(MK.substr(16,8),FK[2]),XOR(MK.substr(24),FK[3]) };
	string rks = "";
	for (int i = 0; i < 32; i++) {
		K[i + 4] = XOR(K[i], T2(XOR(XOR(XOR(K[i + 1], K[i + 2]), K[i + 3]), CK[i])));
		rks += K[i + 4];
	}
	return rks;
}

string encode(string plain, string key) {//加密函数实现
	cout << "轮密钥与每轮输出状态：" << endl;
	cout << endl;
	string cipher[36] = { plain.substr(0,8),plain.substr(8,8),plain.substr(16,8),plain.substr(24) };
	string rks = KeyExtension(key);
	for (int i = 0; i < 32; i++) {
		cipher[i + 4] = XOR(cipher[i], T(XOR(XOR(XOR(cipher[i + 1], cipher[i + 2]), cipher[i + 3]), rks.substr(8 * i, 8))));
		cout << "rk[" + to_string(i) + "] = " + rks.substr(8 * i, 8) + "    X[" + to_string(i) + "] = " + cipher[i + 4] << endl;
	}
	cout << endl;
	return cipher[35] + cipher[34] + cipher[33] + cipher[32];
}

string decode(string cipher, string key) {//解密函数实现
	cout << "轮密钥与每轮输出状态：" << endl;
	cout << endl;
	string plain[36] = { cipher.substr(0,8),cipher.substr(8,8), cipher.substr(16,8), cipher.substr(24,8) };
	string rks = KeyExtension(key);
	for (int i = 0; i < 32; i++) {
		plain[i + 4] = XOR(plain[i], T(XOR(XOR(XOR(plain[i + 1], plain[i + 2]), plain[i + 3]), rks.substr(8 * (31 - i), 8))));
		cout << "rk[" + to_string(i) + "] = " + rks.substr(8 * (31 - i), 8) + "    X[" + to_string(i) + "] = " + plain[i + 4] << endl;
	}
	cout << endl;
	return plain[35] + plain[34] + plain[33] + plain[32];
}

int main() {//主函数
	string str = "0123456789ABCDEFFEDCBA9876543210";
	cout << "明    文：" << str.substr(0, 8) << "  " << str.substr(8, 8) << "  " << str.substr(16, 8) << "  " << str.substr(24, 8) << endl;
	cout << endl;
	string key = "0123456789ABCDEFFEDCBA9876543210";
	cout << "加密密钥：" << key.substr(0, 8) << "  " << key.substr(8, 8) << "  " << key.substr(16, 8) << "  " << key.substr(24, 8) << endl;
	cout << endl;
	string cipher = encode(str, key);
	cout << "密    文：" << cipher.substr(0, 8) << "  " << cipher.substr(8, 8) << "  " << cipher.substr(16, 8) << "  " << cipher.substr(24, 8) << endl;
	cout << endl;
	cout << "密    文：" << cipher.substr(0, 8) << "  " << cipher.substr(8, 8) << "  " << cipher.substr(16, 8) << "  " << cipher.substr(24, 8) << endl;
	cout << endl;
	cout << "解密密钥：" << key.substr(0, 8) << "  " << key.substr(8, 8) << "  " << key.substr(16, 8) << "  " << key.substr(24, 8) << endl;
	cout << endl;
	string plain = decode(cipher, key);
	cout << "明    文：" << plain.substr(0, 8) << "  " << plain.substr(8, 8) << "  " << plain.substr(16, 8) << "  " << plain.substr(24, 8) << endl;
}

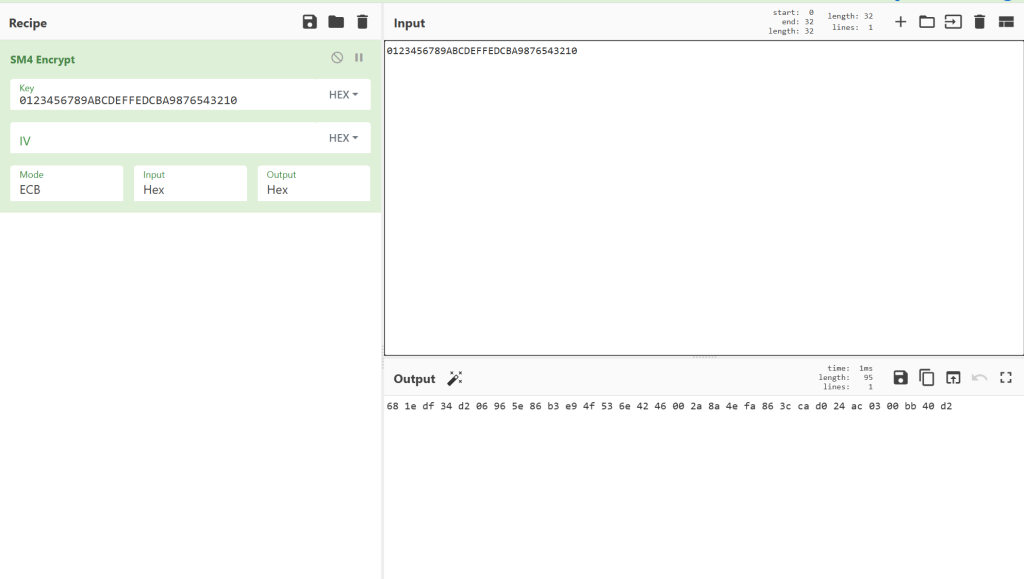

以上代码输出密文是 681EDF34 D206965E 86B3E94F 536E4246 ，刚好 128bit，但是我们会发现，我们在一些在线网站当中加密，会得到长度比 256bit 的密文，但是前 128bit 长度还是相同，如图


我在这里疑惑了好久，最后发现它是一种填充方式，在上面那个博文链接里面也有提及，默认应该是 PKCS7 的填充方式，我试了一下，在同一密钥的情况之下，无论明文是多少，后面填充的 128bit 都是相同的。

关于这个填充方式，以及填充的 128bit 是怎么得来的就不在这提及了，应该挺复杂的，以后有机会再详细学习。
